Toss Boss

Human-Powered Frisbee Launcher

Northeastern Senior Capstone Project

Toss Boss Presentation Photo.jpg
For my Senior Capstone, my buddies and I designed a human-powered frisbee launcher to help players safely practice catching and timing drills -- with an emphasis on cost-effective design, mechanical reliability, and user-controlled operation for consistent flight patterns.

Toss Boss in action: propels frisbees at controlled speeds and angles to simulate real flight conditions for training purposes.

Key Successes

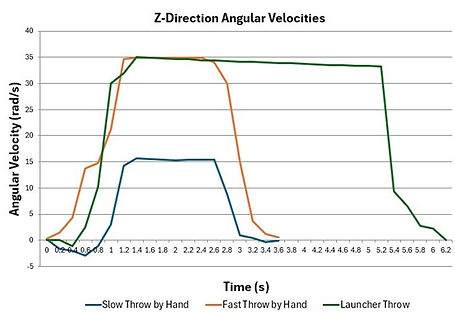

Z-direction Angular Velocities.jpg

To confirm the launcher met the 35 rad/s threshold for stable flight, we tested it against hand throws and measured throw distance based on spring extension

Flight Displacement.png
Spring Displacement.png

We tested frisbee launches at varying spring displacements, averaging results from three trials per setting. The launcher reached a max distance of 70 ft. Data showed a linear relationship between spring extension and distance, consistent with Hooke’s Law. Accelerometer data was also recorded during tests

Subsystem Breakdown


Frame Assembly + Baseplate

Adjustable Slider Arm + Spring

Launch Arm

My Role and Responsibilities

  • Frisbee Launch Testing and Data Analysis

    • Flight data acquisition using accelerometer sensors

    • Analyzed launcher velocity and distance performance

    • Correlated spring displacement with flight distance

  • Frame Contribution

    • Designed custom base plate in CAD with precise spring mounting integration​

    • Assisted in frame geometry decisions to support functional layout and loading

  • Shaft Torsional FEA

  • Part Procurement and Budgeting

  • Technical Writing and Assembly

Final Capstone Poster
